Table of contents:

In this post, we’ll take a closer look at how Hugo really works and explore the ins and outs of page bundles.

We cover:

Attention!

  • The following sections are organized sequentially to build upon concepts progressively. For the best learning experience, a sequential read order is recommended.

  • In this guide, we will reference the layouts/ directory as if we had copied the entire layout structure from the Hugo Scroll theme into our project root. This is purely for brevity and to simplify path references. In reality, any reference to layouts/ points to the Hugo Scroll layouts/ directory unless we explicitly create or modify a layout template within our project’s own layouts/ directory.

  • This theme layout folder might be located in our local themes/hugo-scroll/layouts/ directory if we added this theme as a submodule to our project. Although, the recommended approach is to add themes as Hugo modules, where optionally we can replicate the layouts/ directory in _vendor/github.com/zjedi/hugo-scroll/layouts via hugo mod vendor. I explored this issue in detail in this previous post.

  • Independent of how you imported the theme (via Git submodule or Hugo module), you should not copy the entire layouts/ directory from a theme into your project’s layouts/ directory. Only copy specific layout files you intend to customize. This approach ensures you leverage the theme’s structure without unnecessary duplication, keeping your project clean and maintainable.

  • For a detailed, step-by-step guide on how to set this up properly, read How to create a Hugo-scroll website. In summary, start your project by copying only these essential directories and files from the example site:

    • assets/
    • content/
    • config.toml
    • layouts/partials/custom_head.html

Introduction

Although the terminology is narrow, understanding it is essential to follow this guide. As we advance, few more new concepts will be introduced.

For now, let’s focus on the following distinctions:

  • A leaf bundle is a directory that contains an index.md file and zero or more resources. It has no descendants.

  • A branch bundle:

    • It’s a directory that contains an _index.md file and zero or more resources.
    • Analogous to a physical branch, a branch bundle may have descendants including leaf bundles and other branch bundles.
    • Top-level directories with or without _index.md files are also branch bundles. This includes the home page.

  • A section is a top-level content directory or any content directory containing an _index.md file.

  • A list page is a type of page (a Page object) that is defined by its purpose: it receives and is designed to display a collection of other pages. Its context includes a collection of pages (e.g., .Pages, .RegularPages) that it is meant to list.

  • An index-page(_index.md) is a content file that serves as the source content for certain types of list pages, namely sections and the home page.

  • Single pages are single content files in each of your sections.

Next 15+ minutes video is a bit old, but it’ll help you get more familiar with the last three terms.

If 15 minutes feels too long, this 2-minute read is for you: A Hugo Survival Guide – Hugo’s Processing Model.

We conclude this preamble with a 5-minute hands-on tutorial building The most basic possible Hugo site. If it doesn’t work for you or you don’t fully understand every step, that’s OK. Once you’ve finished reading the current article, this little project will be easy as pie.

Branch bundles

Practical example

Steps:

  1. Run
mkfile() { mkdir -p "$(dirname "$1")" && touch "$1"; }
mkfile content/en/leaf_bundle_to_branch_bundle/index.md

Or more academic way via hugo new content [path] [flags]:

hugo new content leaf_bundle_to_branch_bundle/index.md
# Content "[...]/content/en/leaf_bundle_to_branch_bundle/index.md" created

Note: the URL (permalink) for an index page is <baseURL>/leaf_bundle_to_branch_bundle/, for example, https://example.org/leaf_bundle_to_branch_bundle/. Read Organization of Content Source docs.

  1. Create a new post_1.md in content/en/leaf_bundle_to_branch_bundle/ with hugo new leaf_bundle_to_branch_bundle/post_1.md
  2. In index.md content add a link (<a>) to it siblings page post_1.md
  3. Build the site with hugo server --disableFastRender

If you just did previous steps, then [post_1](/leaf_bundle_to_branch_bundle/post_1) will link to a 404 page. This happends because Hugo doesn’t recognize the directory as a branch bundle capable of having child pages, i.e. the index.md is treated as a standalone page.

Stop (Ctrl + C) the Hugo server and check hugo list all. In our scenerio it outputs:

path,slug,title,date,expiryDate,publishDate,draft,permalink,kind,section
content/en/_index.md,,,0001-01-01T00:00:00Z,0001-01-01T00:00:00Z,0001-01-01T00:00:00Z,false,https://juanmarinero.github.io/,home,
[...]
content/en/leaf_bundle_to_branch_bundle/index.md,,leaf_bundle_to_branch_bundle,0001-01-01T00:00:00Z,0001-01-01T00:00:00Z,0001-01-01T00:00:00Z,false,https://juanmarinero.github.io/leaf_bundle_to_branch_bundle/,page,
[...]

This CSV is hard to read, lets convert it to JSON and read with jq:

hugo list all \
  | python3 -c "import csv, json, sys; print(json.dumps([dict(r) for r in csv.DictReader(sys.stdin)]))" \
  | jq .

Filter by path with [...] | jq '.[] | select(.path | startswith("content/en/leaf_bundle_to_branch_bundle"))' to get next. Notice that post_1.md is not found.

{
  "path": "content/en/leaf_bundle_to_branch_bundle/index.md",
  "slug": "",
  "title": "leaf_bundle_to_branch_bundle",
  "date": "0001-01-01T00:00:00Z",
  "expiryDate": "0001-01-01T00:00:00Z",
  "publishDate": "0001-01-01T00:00:00Z",
  "draft": "false",
  "permalink": "https://juanmarinero.github.io/leaf_bundle_to_branch_bundle/",
  "kind": "page",
  "section": ""
}

Create _index.md converting the leaf_bundle_to_branch_bundle directory, a leaf bundle, into a branch bundle.

  1. Run touch content/en/leaf_bundle_to_branch_bundle/_index.md
  2. Remove the rendered files rm -rf public/leaf_bundle_to_branch_bundle/. Or use the cleanDestinationDir in next step: hugo server --disableFastRender --gc --cleanDestinationDir --ignoreCache
  3. Run hugo server --disableFastRender

The post_1.md link will work.

But now /content/en/leaf_bundle_to_branch_bundle/index.md is inaccessible! We explain this shortly.

Run the previous hugo list all command again (the one with jq).

{
  "path": "content/en/leaf_bundle_to_branch_bundle/post_1.md",
  "slug": "",
  "title": "Post 1 of `leaf_bundle_to_branch_bundle`",
  "date": "0001-01-01T00:00:00Z",
  "expiryDate": "0001-01-01T00:00:00Z",
  "publishDate": "0001-01-01T00:00:00Z",
  "draft": "false",
  "permalink": "https://juanmarinero.github.io/leaf_bundle_to_branch_bundle/post_1/",
  "kind": "page",
  "section": "leaf_bundle_to_branch_bundle"
}

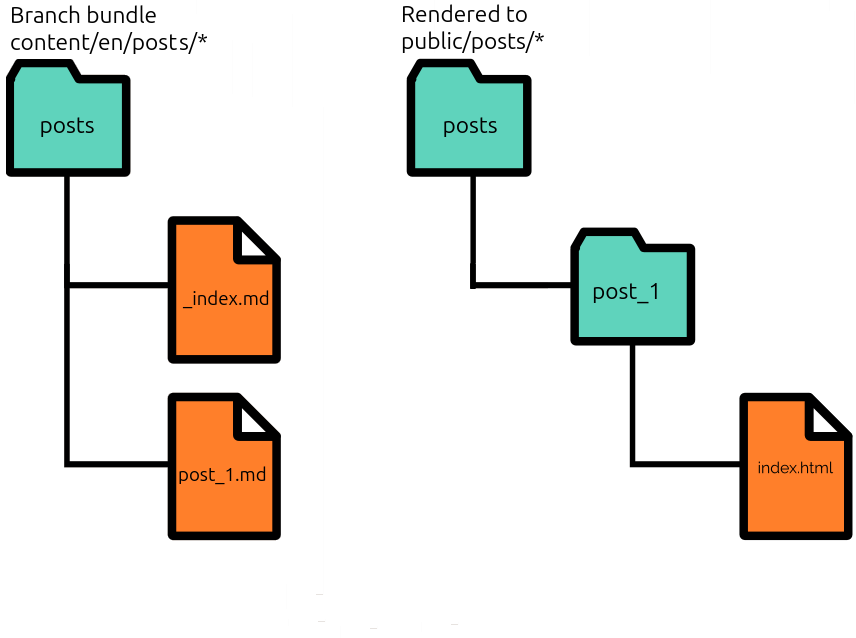

The post_1 now does yes appear in the JSON because it’s become a regular page (kind field is page) within the branch bundle. It’s rendered to public/leaf_bundle_to_branch_bundle/post_1/index.html.

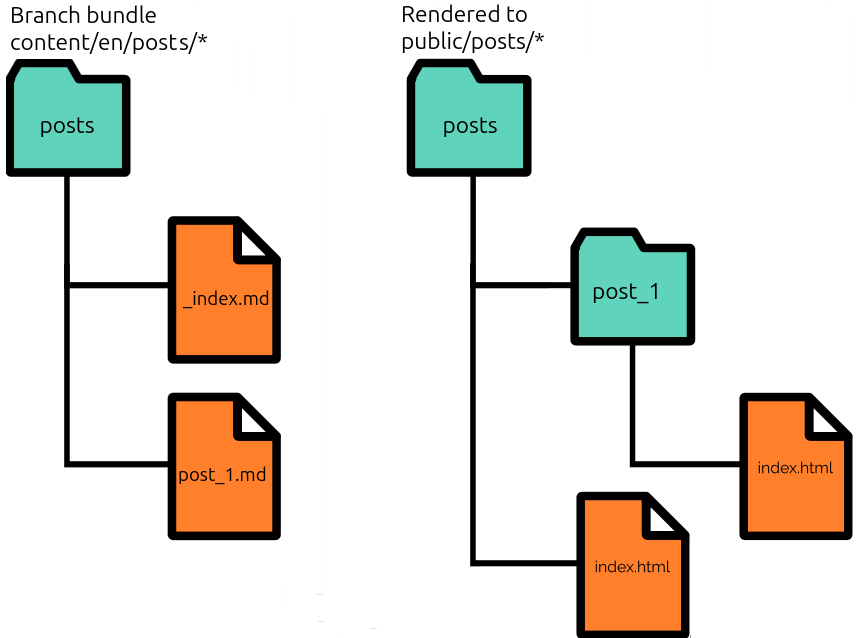

But content/en/leaf_bundle_to_branch_bundle/_index.md is not rendered (to public/leaf_bundle_to_branch_bundle/index.html) because hugo.toml disable section pages:

# This is a "one page"-website, so we do not need these kinds of pages...
disableKinds = ["section", "taxonomy", "term", "RSS", "robotsTXT"]

We deal with this sceneario in the unit List pages not rendered.

And what about the index page? Well, in the first place, can you have both index.md and _index.md in the same directory? Long story short, no (link). In a branch bundle the index.md role is superseded by _index.md.

Execute hugo --printPathWarnings to print warnings on duplicate target paths, etc. For us it echoes:

WARN  Duplicate content path: "/leaf_bundle_to_branch_bundle"
file: "[...]/content/en/leaf_bundle_to_branch_bundle/_index.md"
file: "[...]/content/en/leaf_bundle_to_branch_bundle/index.md"

Thus, run cd en/content/en/leaf_bundle_to_branch_bundle && mv index.md post_2.md.

Why not simply rename index.md to _index.md? Because as I mentioned before this script is not rendered for our Hugo theme. Though you are right, normally this would be the recommended approach.

Now there is another disadvantage. Bring to mind that in the original leaf bundle the index’s permalink was <baseURL>/leaf_bundle_to_branch_bundle/. How can we now browse this link?

  • Add next aliases front matter (an array of strings) to post_2.md. Now <baseURL>/leaf_bundle_to_branch_bundle/. will redirect to <baseURL>/leaf_bundle_to_branch_bundle/post_2/.
aliases:
- /leaf_bundle_to_branch_bundle
  • Alternative set the url front matter url: leaf_bundle_to_branch_bundle. But now <baseURL>/leaf_bundle_to_branch_bundle/post_2/ will be inaccessible. Analogous with the slug front matter.

So, in summary, index.md scripts are rendered if they are located where they should, that means in a singlepage leaf bundle.

Note. For a deep dive of the hugo list all command check the bonus section.

Hugo Scroll dedicated pages

The existence of content/en/_index.md creates the en-branch bundle in the Hugo Scroll demo. Non-/homepage English pages (file path content/en/ but not inside the homepage/ folder) belong to this bundle. Therefore, Hugo will render them preventing 404 errors.

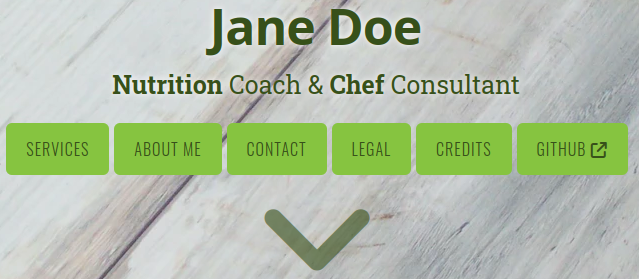

The Hugo Scroll repo calls these sites dedicated pages, to contrast with the [mayority] en/homepage pages that build the main scroll website (discussed later in the Hugo Scroll mainsite segment).

An analogous branch bundle is created for German content by the content/de/_index.md file.

Due to the template lookup order, these dedicated pages are rendered via layouts/_default/single.html, as they are regular pages and no more specific template exists in this theme.

Later, in the custom layouts for a leaf bundle section, we’ll see how to take advantage of this template hierarchy, the lookup order.

For example, the markdown content/en/services.md, once rendered with previous layout, produces next dedicated page.

Leaf bundles

The references exemplify various leaf bundles.

In summary,

  • A leaf bundle can contain no page resources, like content/about below. content/about/index.md is a standalone page.

  • Or, like content/posts/my-post below, it can contain one or more page resources. This leaf bundle contains:

    • An index file
    • content-1, content-2. These are resources of resource type page, accessible via the [Resources] method on the Page object. Hugo will not render these as individual pages.
    • image-1 and image-2 are resources of resource type image, accessible via the Resources method on the Page object
content/
├── about
│   └── index.md
└── posts
    └── my-post
        ├── content-1.md
        ├── content-2.md
        ├── image-1.jpg
        ├── image-2.png
        └── index.md

I underline: Hugo will not render content-1.md nor content-2.md as individual pages. The resulting HTML files are under the public directory:

public/
├── about
│   └── index.html
└── posts
    └── my-post
        └── index.html

Hugo Scroll mainsite

A practical example of a rendered leaf bundle is the Hugo Scroll demo mainsite.

The leaf bundle creation

content/en/homepage/index.md creates the leaf bundle content/en/homepage/.

The headless bundle creation

A headless bundle directory structure contains, as any leaf bundle:

  • index.md, here called headless page
  • Resource files (other Markdown files, images, etc.)

A leaf bundle is made headless by adding in the index.md’s front matter headless = true. #4311 proposed this feature.

A specific combination of settings within the cascade.build front matter map is functionally equivalent to headless = true. This approach offers more granular control and is the modern method for achieving the headless behavior. Read:

A headless bundle has two main effects:

  1. The index.md is not rendered on its own. It will not go through the standard template lookup order to find a template (like single.html) to render itself into an HTML file. This is the “headless” part.
  2. Its page resources (here opener.md, about-me.md, etc.) are of course as in any leaf bundle not published individually (publishResources = false build option). Their sole purpose is to exist as Page objects in Hugo’s internal memory, to be available to be fetched by a layout template via .GetPage or .Resources.

Wrapping up, no markdown in content/en/homepage is directly rendered, for e.g. public/homepage/index.html is not created, nor public/homepage/about-me/index.html, etc. Instead of a directly render, what’s rendered is public/index.html thanks both the content/en/_index.md and a clever layout code that get the page resources of the pagesless bundle content/en/homepage/. Details in next sections.

Lookup order, the template hierarchy

The file that defines the homepage for a language is content/<language>/_index.md since hugo.toml sets:

[languages]
  [languages.en]
    weight = 10
    languageName = "English"
    contentDir = "content/en"

This file, for us content/en/_index.md, automatically gets the PAGE.Kind of home. hugo list all confirms this:

hugo list all \
  | python3 -c "import csv, json, sys; print(json.dumps([dict(r) for r in csv.DictReader(sys.stdin)]))" \
  | jq '.[] | select(.kind=="home")'

Notice the penultimate JSON field:

{
  "path": "content/en/_index.md",
  "slug": "",
  "title": "",
  "date": "0001-01-01T00:00:00Z",
  "expiryDate": "0001-01-01T00:00:00Z",
  "publishDate": "0001-01-01T00:00:00Z",
  "draft": "false",
  "permalink": "https://juanmarinero.github.io/",
  "kind": "home",
  "section": ""
}

The lookup order for PAGE.Kind is complex. After checking for more specific templates, the theme ultimately uses layouts/_default/index.html to render the home page.

Challenge! Investigate the complete layout hierarchy followed, not just the final results.

How the layout template operates

The theme’s homepage layout layouts/_default/index.html is programmed to fetch the resources from the content/en/homepage/ headless bundle. It uses:

  • {{ $headless := .GetPage "./homepage" }} to access the bundle
  • The ByType in {{ $sections := $headless.Resources.ByType "page" }} returns a collection of page resources of the given media type (which content might be later fetched as sections of the unique rendered page).
  • Finally {{ $content := where (where $sections "Params.external" "==" nil) "Params.detailed_page_homepage_content" "ne" false }} has a where that filters the collection based on conditions (e.g., removing drafts, excluding external links)

The final single-page site is assembled by this layout based on:

  • The content of each resource file.
  • The order of the page resource in the $content collection. {{ range $index_val, $elem_val := $content }} line of index.html.

Note the $content collection page have a default order:

  1. The default sort order for page collections, used when no other criteria are set, follows this priority: weight, date, […]. This order criteria is fixed, link.
  2. Where, a page collection is a slice of Page objects.
  3. Since {{ $sections := $headless.Resources.ByType "page" }} returns a collection of page resources that later is filtered into $content.
  4. And a page resource is a file within a page bundle.
  5. Then, $sections, and consequently $content, is a slice of Pages objects, precisely of Pages of objects of subtype “page resources”
  6. The documentation does not specify that a “page resource” cannot be part of a Page object.

The observation ratifies the pre-sorting, since:

An important note. If the returned list of resource were not pages but for example images, like {{ $sections := $headless.Resources.ByType"image"}} then this slice would not be pre-sorted.

If $section was not default sorted, then the range loop would not sort it. Hugo’s render only pre-sorts maps, link

Unlike ranging over an array or slice, Hugo sorts by key when ranging over a map.

Thus, the Go’s range-loop mechanism is enhanced in Hugo’s range to first sort maps by key. Since $content is a page resources array, and not a map, then render will not pre-sort it. {{ range $index_val, $elem_val := $content }} would be equivalent in Python to an enumerate-loop: for index_val, elem_val in enumerate(content): pass.

A deeper analysis of code lines of layouts templates is to come in next sections.

ℹ️ Previous layout locations might change in future because recent changes to the layouts folder:

Move all files in layouts/_default up to the layouts/ root.

Hugo Template Inheritance: How baseof.html integrates index.html ‘main’ block

This is a basic guide, therefore for us is enough to understand the next lines of layouts/_default/baseof.html, the final HTML renderer (base template using a Hugo-sh terminology).

<!DOCTYPE html>
<html lang="{{ .Site.Language.Lang }}">
  <head>
    {{- partial "head.html" . -}}
  </head>
  <body>
    {{- partial "header.html" . -}}
    {{- block "main" . }}{{- end }}
    {{- partial "footer.html" . -}}

    [...]
  </body>
</html>

Note the {{- block "main" . }}{{- end }} line, there it’s inserted the main block. This is defined in layouts/_default/index.html, since its first line {{ define "main" }} is closed by a {{- end }} line at EOF.

Next video tutorial explains this more visually.

The footer integration is later explained in this section.

If you need to consolidate the Hugo’s content knowledges we have introduced, just follow this 5 minutes tutorial building The most basic possible Hugo site. It’s based on this Gist.

I recommend the following 40+ minutes video by Berkay Çubuk too.

Giraffe Academy Block Templates 7 minutes video and post is good too. Complete it with his Partial Templates post.

Finally, if you mastered everything till now, then try to understand further headless page examples, not just the Hugo Scroll mainsite. For example:

In other scenarios a headless bundle it’s not the right or simpler approach:

  • Listing headless bundles (as opposed to just retrieving a single one) is a right pain. Links 1, 2, 3, 4 .

An undesired leaf bundle example

content/en/leaf_bundle_wrong file tree is:

leaf_bundle_wrong/
├── index.md
└── post_1.md

Navigate there and check how a link to its sibling /leaf_bundle_wrong/post_1 does not work.

In next sections we study how to fix this. In summary:

  • Use a leaf bundle as intended
    • Requiring just one page resource, a standalone page, e.g. index.md. Rest of page resources (post_1.md) are not needed
    • Or create a proper layout that concatenates the leaf bundle resources, as we show that Hugo Scroll mainsite does
  • Alternative, of course, you can evolve it to a branch bundle. You might remember that the current file structure is identical as seen in the first steps of the branch bundle practical example, when it was just a leaf bundle.

The type front matter bypassing

The docs define this front matter field as:

(string) The content type, overriding the value derived from the top-level section [read theory] in which the page resides. Access this value from a template using the Type method on a Page object.

Which is vague without the content types definition:

A content type is a classification of content inferred from the top-level directory name or the type set in front matter. Pages in the root of the content directory, including the home page, are of type “page”. The content type is a contributing factor in the template lookup order and determines which archetype template to use when creating new content.

In the branch bundle practical example, instead of generating a _index.md, and therefore a branch bundle, as we did before, one can simply add the type: section front matter to index.md. Now the post_1.md link will appear to work because the directory has changed:

  • From a leaf bundle with markdowns of type “page”
  • To a branch bundle God knows what with markdowns of type “section”. The underlying file structure is still a leaf bundle.

Though using type: section on a regular page is a hack or an unintended use of the type field. It violates the intended encapsulation methods for accessing a page’s internal data, bypassing the intended mechanisms for setting a section content type. The Hugo documentation is very clear about the structural difference between leaf and branch bundles. The prescribed method for creating a “section” is to use an _index.md file. Not via type: section front matter.

Since this is not the standard (correct) approach to create a branch bundle, it can have totally unexpected results. For example the respective hugo list all is equal as in original leaf bundle: still not including post_1.md.

So, what is the legitimate use of the type front matter? The content types definition already pointed a frequent use of the type field: change the template lookup order for a page. This is what we apply next.

Custom layouts for a leaf bundle

https://gohugo.io/templates/types/

A section template renders a list of pages within a section.

The idea is basically apply next 3 minutes video proccess in leaf bundles.

Remember next case scenario:

These [content-1.md, content-2] are resources of resource type page, accessible via the [Resources] method on the Page object. Hugo will not render these as individual pages.

For the Hugo Scroll theme we already covered here how the en/homepage/ leaf bundle is rendered with layouts/_default/index.html. But this layout is too complex for our learning purposes; we want a simpler example. Thus, we will just expand the layouts/_default/single.html used for the dedicated pages of this Hugo theme.

We want a new custom layout for our leaf bundle. This layout should render in the index.md file…

  • First its content exactly as constructed till now.
  • Then the content of its sibling content-1.md, rendering its title front matter as <h2>. I emphasize, this is not rendered as an individual page.

To apply the new layout we must start creating a new leaf bundle directory. content/en/leaf_bundle_to_layout/ shall have the same tree file structure as content/en/leaf_bundle_wrong/:

leaf_bundle_to_layout/
├── index.md
└── content-1.md
  1. In content/en/leaf_bundle_to_layout/index.md override the type front matter with: type: "leaf_bundle_to_layout".
  2. Run mkdir -p layouts/leaf_bundle_to_layout
  3. Edit layouts/leaf_bundle_to_layout/single.html as next. This template enlarges layouts/_default/single.html. Pay particular attention to the highlighted lines.
 1{{ define "main" }}
 2  <main class="content page-template page-{{ .Slug }}">
 3    <article class="post page">
 4      <header class="post-header">
 5        {{ with .Parent }}
 6          {{ if hugo.IsMultihost }}
 7          <a id="back-to-main-page" href="{{ .RelPermalink | relLangURL }}"><i class="fa fa-chevron-left" aria-hidden="true"></i> {{ or .Title .Site.Title }}</a>
 8          {{ else }}
 9        <a id="back-to-main-page" href="{{ .RelPermalink | relLangURL }}"><i class="fa fa-chevron-left" aria-hidden="true"></i> {{ or .Title .Site.Title }}</a>
10          {{ end }}
11        {{ end }}
12      </header>
13      <h1 class="post-title">{{ .Title }}</h1>
14      <section class="post-content">
15        {{ .Content }}
16      </section>
17
18      {{/* Check if `type` front matter changed the resource type */}}
19      {{ with .ResourceType }}
20        <div>Resource type: {{ . }} </div>
21      {{ end }}
22      {{/* And the Page.Type */}}
23      {{ with .Page.Type }}
24        <div>Page type: {{ . }} </div>
25      {{ end }}
26    </article>
27
28    {{/* Render the resource's content directly */}}
29    {{ $subpage := .Resources.Get "content-1.md" }}
30    {{ if $subpage }}
31      <article class="post page">
32         <h2>{{ $subpage.Title }}</h2>
33         <div>{{ $subpage.Content }}</div>
34         {{/* Check if `type` front matter changed the resource type */}}
35         {{ with $subpage.ResourceType }}
36           <div>Resource type: {{ . }} </div>
37         {{ end }}
38         {{/* And the Page.Type */}}
39         {{ with $subpage.Page.Type }}
40           <div>Page type: {{ . }} </div>
41         {{ end }}
42      </article>
43    {{ else }}
44      <p>Debug: Resource 'content-1.md' not found.</p>
45    {{ end }}
46
47  </main>
48{{ end }}
  1. Build with hugo server --disableFastRender and check the result in public/leaf_bundle_to_layout/index.html. Observe how the sibling’s content-1.md title and content is rendered as a section after the index.md content.

These steps are a quick example of how to target a specific template by leveraging Hugo’s template lookup rules. Read the docs for deeper understanding and customizations.

Challenge: edit the layout code to make it render all page resources inside the bundle, not just index.md and content-1.md, but also content-2.md, content-3.md, etc.

type front matter on index.md

The first step we did was

  1. In content/en/leaf_bundle_to_layout/index.md override the front matter type with: type: "leaf_bundle_to_layout".

One could think that the quoted statmenet could be adapted for our case scenario as: These content-1.md, content-2.md[, etc.] are resources of type page leaf_bundle_to_layout, accessible via the [Resources] method on the Page object.

This would be wrong because the type front matter in index.md does not change the fundamental nature of the resources inside the bundle.

What type: "leaf_bundle_to_layout" in index.md actually does

  1. It forces the Page’s type. The Page object returned by the index.md file (the leaf bundle page) contains a mandatory .Type method, the "leaf_bundle_to_layout" instead of its default value. But anyhow the PAGE.Type is the same as the default value it would have had, which is derived (as stayed in the type front matter doc) from the top-level section name (the directory leaf_bundle_to_layout). The type front matter simply provides explicit control over this value.

  2. It changes the template lookup for the bundle, which is the powerful feature we successfully leveraged. It forces Hugo to look for rendering templates in layouts/leaf_bundle_to_layout/ instead of the default location (layouts/_default/). In the type front matter bypassing section we cited this legitime technique already. The PAGE.Type documentation briefly points this out too:

The type field in front matter is also useful for targeting a template. See details.

What it does NOT do
  • It does not change the .ResourceType (see resource type glossary) of the files inside the bundle (like content-1.md).

The next chunks of the previously shown layouts/leaf_bundle_to_layout/single.html demonstrate it.

  • The first block outputs page as the resource type of index.md.
  • The second displays the same for the content-1.md resource type.
  • The Page.Type displayed for the bundle’s index page is leaf_bundle_to_layout. The resource content-1.md is also associated with this type within the context of the bundle.
18{{/* Check if `type` front matter changed the resource type */}}
19{{ with .ResourceType }}
20  <div>Resource type: {{ . }} </div> <!-- page -->
21{{ end }}
22{{/* And the Page.Type */}}
23{{ with .Page.Type }}
24  <div>Page type: {{ . }} </div> <!-- leaf_bundle_to_layout -->
25{{ end }}

34{{/* Check if `type` front matter changed the resource type */}}
35{{ with $subpage.ResourceType }}
36  <div>Resource type: {{ . }} </div> <!-- page -->
37{{ end }}
38{{/* And the Page.Type */}}
39{{ with $subpage.Page.Type }}
40  <div>Page type: {{ . }} </div> <!-- leaf_bundle_to_layout -->
41{{ end }}

Check the results in the rendered public/leaf_bundle_to_layout/index.html website.

This demonstrates that the type front matter affects template selection and page metadata (Page.Type) but does not alter the fundamental resource type of the files within the bundle.

The key distinction: Page.Type vs. Resource.ResourceType

This is the heart of the confusion. Hugo has two related but different concepts:

Page.Type is the Page object representing a content file. It’s a high-level classification used for template lookup. Set by:

  • The section name, like content/en/homepage for the Hugo Scroll mainsite
  • Or by the type front matter as just exemplified.

Resource.ResourceType is an individual Resource object (a file inside a bundle). This property is a low-level technical classification of the file’s format and purpose. This can be a page, image, video, etc.

The accurate description of our scenario

Therefore, the most precise description is:

content-1.md is a resource of resource type page, accessible via the [Resources] method on the Page object. The Page object for the bundle has its Type set to "leaf_bundle_to_layout" via front matter, which dictates the template used to render the entire bundle. Hugo will not render content-1.md as an individual page because it is located inside a leaf bundle folder.

Hugo Scroll: header menus to any page

We add items to the header menu in the Hugo Scroll theme. In the process, we will also learn how the footer menu links are edited.

layouts/_default/index.html code starts declaring $sections, a [pre-sorted by weight front matter] collection of page resources. This was explained in the headless bundle section above.

{{ $headless := .GetPage "./homepage" }} {{/* Fetch the headless bundle */}}
{{ $sections := $headless.Resources.ByType "page" }}  {{/* Get pre-sorted all its Markdown page resources */}}

.Site.BuildDrafts checks if Hugo is building with drafts enabled:

  • If true then keep all sections (including drafts)
  • Otherwise, remove any pages that have draft: true in their front matter
{{ $sections := cond .Site.BuildDrafts $sections (where $sections "Draft" "==" false) }}

And eventually the interesting block that loops the $sections pages:

{{ range where $sections ".Params.header_menu" "eq" true }}
  {{ $button_title := .Title }}
  {{ with .Params.header_menu_title }}{{ $button_title = . }}{{ end }}

  {{ if isset .Params "external" }}
     <a class='btn site-menu' href='{{ .Params.external | absURL }}'>{{ $button_title }}&nbsp;<i class="fa fa-external-link"></i></a>
  {{ else if isset .Params "detailed_page_path" }}
     <a class='btn site-menu' href='{{ .Params.detailed_page_path | relLangURL }}'>{{ $button_title }}</a>
  {{ else }}
    {{ $fnav_title := .Title }}{{ with .Params.navigation_menu_title }}{{ $fnav_title = . }}{{ end }}
     <a class='btn site-menu' data-title-anchor='{{ anchorize $fnav_title }}' href='#{{ anchorize $fnav_title }}'>{{ $button_title }}</a>
  {{ end }}
{{ end }}

The condition {{ range where $sections ".Params.header_menu" "eq" true }} evaluates to true when the current page in the range-loop has a header_menu front matter set to true. For this same page, the nested condition {{ if isset .Params "external" }} evaluates to true when the page has an external front matter. content/en/homepage/external.md has both of these front matter fields set accordingly:

---
title: "GitHub"
weight: 99
header_menu: true
external: https://github.com/zjedi/hugo-scroll
---

The resulting header menu button is

<a
  class="btn site-menu"
  href="https://github.com/zjedi/hugo-scroll">
  GitHub&nbsp;
  <i class="fa fa-external-link"></i>
</a>

It’s the one on the far right:


Just copy this markdown script and adapt the title, weight and external front matter values to your needs to create a new header menu link in your Hugo Scroll mainsite. Repeat as needed.

Finally, what about the order of these header menu buttons? In the headless bundle section above we demonstrated that the page resources contained in the $sections slice are pre-sorted by the weight front matter (of each of the page resources). Therefore, {{ range where $sections ".Params.header_menu" "eq" true }} iterates a $sections-list already sorted by weight. Example:

  • On the far left is the button pointing to the content/en/homepage/services.md section content. This is because its weight front matter value of 5 is the lowest among the $sections.
  • The button furthest to the right belongs to the external Github because content/en/homepage/external.md has the highest weight front matter value of 99.
  • We can infer that the remaining buttons correspond to Markdown files with weights ranging from 5 to 99.

detailed_page_homepage_content: false

The en/homepage/license.md is

---
footer_menu_title: License
footer_menu: true
detailed_page_path: /license/
detailed_page_homepage_content: false
weight: 91
---

The detailed_page_homepage_content is set to false to exclude the content/en/homepage/license.md page from the homepage content. I.e. the layout described in the Hugo Scroll mainsite unit skips the rendering of the section license.md. Since its {{ .Content }} will not be rendered, it has no content; it just contains the front matter lines.

The detailed_page_path front matter in content/en/homepage/license.md is set to /license/, i.e. to /content/en/license.md (this file no longer resides in the homepage folder). Therefore, the footer menu link points to this later page (and not to a external link as happened with the Github header menu link).

In summary, the cited layout skips this page content but it does render the footer menu link in the homepage.

Edit it to render a header menu button instead, and point to a index.md of a branch bundle:

---
header_menu_title: "Dedicated Section"
header_menu: true
detailed_page_path: /leaf_bundle_to_branch_bundle/
detailed_page_homepage_content: false
weight: 91
---

The scenario is analogous. The layout skips previous page content (no section in the homepage for its content), but it does create the header menu link in the homepage.

Here the detailed_path front matter exists in a resource page. I.e. focus on next code lines of the index.html layout:

{{ else if isset .Params "detailed_page_path" }}
     <a class='btn site-menu' href='{{ .Params.detailed_page_path | relLangURL }}'>{{ $button_title }}</a>

Hugo Template Inheritance: How baseof.html integrates footer.html content

The footer menu link rendering code is easy to understand as it’s nearly identical to the header menu button explained in previous paragraph.

Just focus on next lines of layouts/partials/footer.html:

{{ $headless := .Site.GetPage "/homepage" }}
{{ $sections := $headless.Resources.ByType "page" }}
[...]
 {{ range where $sections ".Params.footer_menu" "eq" true }}
        <li>
          <a href="{{ relLangURL .Params.detailed_page_path }}">{{ .Params.footer_menu_title }}</a>
        </li>
      {{ end }}
[...]

Finally, the {{- partial "footer.html" . -}} call in layouts/_default/baseof.html (shown here) executes this code and injects the resulting footer menu into the page.

List pages not rendered

Render lists vs SAP

The rendering of next branch bundle content/posts/ (left side of next tree file representations) is:

  • The next left image if the Hugo’s hugo.toml-disableKinds does not include "section". This is the standard.
  • The next right image if the Hugo’s hugo.toml-disableKinds does yes include "section". For example in the Hugo Scroll demo.
SAP. _index.md and branch bundles if layouts/_default/index.html if hugo.toml disableKinds does not include 'section'-s_index.md and branch bundles if layouts/_default/index.html hugo.toml disableKinds does yes include 'section'-s

Hugo Scroll is a SAP

The Hugo Scroll theme is coded to be a Single-Page Application (SPA) because exampleSite/hugo.toml sets disableKinds = ["section", [...]].

In summary, it’s meant to:

  • Render the homepage from the homepage headless bundle. Explained in the Hugo Scroll mainsite section. Here the _index scripts is yes rendered. We already show this in the CSV output above for content/en/_index.md.
  • Render everything else using the single.html template. Read Hugo Scroll dedicated pages paragraph.

Then, no surprise that Hugo Scroll layouts/_default/list.html is empty.

How to reverse this

  1. Edit your hugo.toml-disableKinds line: remove the chars "section" .
  2. Edit your layouts/_default/list.html to next.
{{ define "main" }}
<div class="container">
  <h1>{{ .Title }}</h1>

  <ul>
    {{ range .Pages }}
      <li>
        <a href="{{ .RelPermalink }}">{{ .Title }}</a>
      </li>
    {{ end }}
  </ul>

  {{ .Content }}
</div>
{{ end }}
  1. Build. Run hugo server --disableFastRender.
  2. Check public/posts/_index.html is rendered, view it in the browser via http://localhost:1313/posts/.

The previous list.html is basic. Read other template alternatives, for example next ones are sorted by complexity.

Workaround in SAP projects

This very website you are reading is thanks to the branch bundle content/en/blogs/.

In this Hugo project hugo.toml-disableKinds contains "section". Thus, each _index.md branch page, for example the one in the content/en/blogs/ branch bundle, is not rendered. I.e. public/blogs/index.html is not generated, and therefore https://juanmarinero.github.io/blogs/ should show 404 (which is not the case because it’s aliased as I clarify below).

This could be easily fixed following the steps of previous section, but:

  • I am not sure what list.html layout would suit me. Or the one I need is too complex as I explain below.
  • I want to manually edit the markdown that lists my posts. These posts are the markdowns contained in the folder content/en/blogs/. Sidenote, it’s blogs/ and not posts/ because I write about different thematics like coding, books and travel; I consider every topic a blog (which contains posts).

To manually edit my list of posts I just use the dedicated page content/en/blogs_index.md, whose layout renderer is single.html.

The proccess is, as I said, manual. I write the blogs—topic— headers and their respectives links to the proper posts. For example, for my blog about books the header and first post link are coded in my list of posts (blogs_index.md) with:

### 📚 Books

{{< rawhtml >}}
<div class="blogs_index">
  <a href="/blogs/tolkien/" class="no-underline-except-hover">
  <span style="font-family: 'MiddleEarth JoannaVu', cursive; font-size: 2.3rem;">Tolkien</span>:
  books, podcasts and much more!
  </a>
</div>
{{< /rawhtml >}}

Finally in content/en/blogs_index.md front matter, one can either:

aliases:
- blogs
  • Or set the url front matter to "blogs/". Analogous with the slug front matter.

The later approach just enables https://juanmarinero.github.io/blogs/ (https://juanmarinero.github.io/blogs_index/ would show a 404).

The first option is the one I used. It redirects https://juanmarinero.github.io/blogs/ (which is no longer a 404) to https://juanmarinero.github.io/blogs_index/. So, both links are accesibles. And consequently, not only the public/blogs_index/index.html is still generated, but also public/blogs/index.html is created as a client-side redirection to the blogs_index website:

<!DOCTYPE html>
<html lang="en">
  <head>
    <title>http://localhost:1313/blogs_index/</title>
    <link rel="canonical" href="http://localhost:1313/blogs_index/">
    <meta name="robots" content="noindex">
    <meta charset="utf-8">
    <meta http-equiv="refresh" content="0; url=http://localhost:1313/blogs_index/">
  </head>
</html>

Note. <link rel="canonical" href="http://localhost:1313/blogs_index/"> does not redirects. Instead, it is a signal to search engines saying: This URL is the preferred (canonical) version of this page. It helps avoid duplicate content issues by telling search engines which URL to index and display in search results.

I choose the first option. Because the shock that produces me that:

  • A post’s URL ends in /blogs/<post-name>
  • Meanwhile, the URL shown in the browser for the list of posts ends in /blogs_index/ (for both links because of the alias redirection). This surprises me because the natural URL of the list, in a non SAP website, would simply end in /blogs/ —and I must have a minor obsession with order, hehe.

I kind of like this shock because it servers as an efficient reminder that the list of posts is not generated automatically via a list.html layout. It’s my duty to keep it up to date, which I happily do because so I customize the order of these links as I write more posts.

To give you an idea, suppose I have just three posts in the “books” blog. I wrote a post about Tolkien, then another about a different author (e.g. Shakespeare), and then again other concering Middle Earth. Now I want the first link followed by the third (boths of same sub-topic) in the list of posts, and not chronologically sorted obtained if these posts had same weight front matter and my list.html layout just uses the collection of pages pre-sort (more about this default pre-sort here).

Of course, I could code a list.html layout that checks a non-official topic front matter (set it in previous three posts to “books”), then add another sub-topic front matter (e.g. previous posts would have here “Tolkien”, “Shakespeare” and “Tokien” respectively). And finally, if same topic and same sub-topic, then sort by the weigth front matter (and/or by date). Though the topic can be skipped if I reorder every post markdown into a folder of its topic, which is not the case since I am not sure, e.g. the blog about web-dev might in future be splitted into NodeJS and Deno and I don’t want (for now) to have to reorder the script locations, nor the links to these posts coded in other pages (like when a post invites to read another post). To group content together even if that content isn’t in the same directory in the content folder, one can use taxonomies (hugo.toml-disableKinds must not hindern us). In conclusion, this proposed layout would be quite complex, and for now my manual strategy is enough.

Notice, though, that this whole proccess —manual updating of a list of posts— would be too tedious if I had hundreds of posts or if I wrote many every day. I could even lose track of a no-draft post and fortget to add it to the list. It can also happen that I forget to comment out links to posts that shouldn’t be visible in the list, for example the drafts. Thus, in this high production of posts scenario, copying/populating the list.html layout that automatically lists the posts would be more convenient and efficient. Work smart, not hard.

Understanding list pages and its template hierarchy

In the introduction we studied that:

  • A section is a top-level content directory or any content directory containing an _index.md file.

  • A list page is a type of page (a Page object) that is defined by its purpose: it receives and is designed to display a collection of other pages. Its context includes a collection of pages (e.g., .Pages, .RegularPages) that it is meant to list.

The docs also specify that a list template is a fallback for home, section, taxonomy, and term templates. If one of these template types does not exist, Hugo will look for a list template [list.html] instead. The list template precedence hierarchy can be summarized as follows: home > section > taxonomy > term > list.

Why? Read template lookup order.

So, a list template is a layout template (list.html, section.html,…) used to render index pages for collections of content. While these collections are often sections, a list template also renders other types of index pages that are not sections.

A collection of content can be a branch bundle. Remember from the introduction that a branch bundle might be a top-level directories with or without _index.md files. This includes the home page.

Therefore, if without a _index.md file, this mentioned top-level folder is not a section.

Sidenote. The home page is a special list page that’s rendered, if possible, by layouts/index.html or layouts/_default/index.html, following the same principle of template specificity (home > section > ...).

Practical demonstration: template lookup order in action

Let’s code a Minimal Working Example continuing the previous one that populated the list.html layout. Thus, we’ll have both list.html and a section.html layout templates.

For any content directory (branch bundle) that generates a list page, Hugo will use the most specific available template according to its lookup order. Since we have a section.html template and no more specific templates, it will be used for both:

  1. True sections (directories with _index.md)
  2. Branch bundles that are not sections (directories without _index.md)

First edit your hugo.toml-disableKinds line: remove the chars "section" .

Then, if not already done, populate the list.html layout as explained in this previous paragraph.

We can just use a copy of list.html and rename it to section.html. Then modify it to display a new <h1> so we know which layout rendered each list page. This’s coded in the second line because {{ define "main" }} (first line of layout) and its {{ end }} (at EOF) must wrap all.

cd layouts/_default \
  && cp list.html section.html \
  && sed -i '1a <h1>Rendered by section.html</h1>' section.html \
  && head section.html \
  && cd -

Create the articles/ directory and scripts:

# content/en/ not needed in path
hugo new articles/article-one.md
hugo new articles/article-two.md

Note that content/en/articles/ is a branch bundle it’s a top-level directories [with or] without _index.md file and it also lacks index.md (to be a leaf bundle). But not a section because it doesn’t have an _index.md file.

Let’s inspect the markdowns with cat or bat:

bat content/en/articles/*

───────┬─────────────────────────────────────────
       │ File: content/en/articles/article-one.md
───────┼─────────────────────────────────────────
   1   │ ---
   2   │ title: 'Article One'
   3   │ ---
   4   │
   5   │ This is a page about »Article One«.
───────┴─────────────────────────────────────────
───────┬─────────────────────────────────────────
       │ File: content/en/articles/article-two.md
───────┼─────────────────────────────────────────
   1   │ ---
   2   │ title: 'Article Two'
   3   │ ---
   4   │
   5   │ This is a page about »Article Two«.
───────┴────────────────────────────────────────

The archetypes/default.md layout is responsible for the front matter and content. It’s:

---
title: '{{ replace .Name "-" " " | title }}'
---

This is a page about »{{ replace .Name "-" " " | title }}«.

Create the projects/ directory and scripts:

hugo new projects/project-alpha.md
hugo new projects/project-beta.md
hugo new projects/_index.md
bat content/en/projects/* # inspect

This is obviously a branch bundle.

We are ready to build the site with hugo server --disableFastRender.

Verify that:

Let’s summarize our findings.

layouts/_default/ holds both section.html and list.html. The first has priority over the second to render a list page.

Our testing project has:

  • A projects/ section with _index.md (a branch bundle and section)
  • And articles/ as a section content folder without _index.md (a branch bundle and no section).

Although articles/ is not a section (no _index.md), it is still rendered by section.html because Hugo treats any content directory as a potential list page, and since we have section.html, it is used for such directories due to the template lookup order. However, strictly speaking, only directories with _index.md are sections. Without _index.md, it is a branch bundle but not a section, but it still generates a list page that uses the section template if available.

Run tree public/articles public/projects:

content/en/
├── _index.md            # 🏠 Homepage
│
├── projects/            # 🌿 A section directory
│   ├── _index.md        # Projects section page
│   ├── project-alpha.md # ...uses section.html
│   └── project-beta.md
│
└── articles/            # 🌿 Branch bundle but no section
    │                    # Projects section page
    ├── article-one.md   # ...uses section.html
    └── article-two.md

Hugo builds:

public/
├── index.html         # 🏠 Homepage by index.html
│
├── projects/          # 🌿
│   ├── index.html     # Rendered by section.html ❗
│   ├── project-alpha/
│   │   └── index.html # Single page by single.html
│   └── project-beta/
│       └── index.html # Single page by single.html
│
└── articles/          # 🌿
    ├── index.html     # Rendered by section.html ❗
    ├── article-one/
    │   └── index.html # Single page by single.html
    └── article-two/
        └── index.html # Single page by single.html

Overriding template selection with front matter

We already saw how to use a Custom layouts for a leaf bundle.

Now the scenario is not quite the same:

  • It’s a branch bundle.
  • And we solve the requirement with an standard template (located in layouts/_default/).

For our case it’s enough to add layout: "list" to the front matter of content/en/projects/_index.md:

sed -i '2a layout: "list"' content/en/projects/_index.md

cat content/en/projects/_index.md prints the script:

---
title: 'Projects'
layout: "list"
---

This is a page about »Projects«.

Re-build the site with hugo server --disableFastRender. Audit that:

Therefore, the same file structure is rendered differently.

content/
├── _index.md            # 🏠
│
├── projects/            # 🌿
│   ├── _index.md        # layout front matter
│   ├── project-alpha.md # ...set to "list"
│   └── project-beta.md
│
└── articles/            # 🌿
    │
    ├── article-one.md
    └── article-two.md

Notice the exclamation marks emojis.

public/
├── index.html         # 🏠 Homepage by index.html
│
├── projects/          # 🌿
│   ├── index.html     # Rendered by list.html ‼️
│   ├── project-alpha/
│   │   └── index.html # Single page by single.html
│   └── project-beta/
│       └── index.html # Single page by single.html
│
└── articles/          # 🌿
    ├── index.html     # Rendered by section.html ❗
    ├── article-one/
    │   └── index.html # Single page by single.html
    └── article-two/
        └── index.html # Single page by single.html

Challenge! Without removing section.html generate public/articles/index.html with list.html.

Solution - Click to expand

Just replicate the _index.md of projects/. Run:

hugo new articles/_index.md
sed -i '2a layout: "list"' content/en/articles/_index.md

The hugo list all command

hugo list all displays, in CSV format, values related to Hugo’s internal Page object:

The values for some of these attributes (like title, slug, date) can be populated or overridden by front matter, while others (like path, kind, and section) are derived from the page’s structure and location.

The following section explains the command’s source code. Feel free to skip this deep dive if you are only interested in using the command.

The all subcommand implementation

The core function that runs, defined in hugo/commands/list.go, is next. This aims to pass which pages must be later inspected, i.e. all content pages.

run: func(ctx context.Context, cd *simplecobra.Commandeer, r *rootCommand, args []string) error {
    shouldInclude := func(p page.Page) bool {
        return p.File() != nil
    }
    return list(cd, r, shouldInclude, "buildDrafts", true, "buildFuture", true, "buildExpired", true)
},
  1. The shouldInclude is a filter function. It defines which pages should be included in the list.
  • func(p page.Page) bool: It takes a Hugo Page object as input and returns true if it should be included.
  • return p.File() != nil: This is the condition. It includes a page only if it has an associated source file (i.e., p.File() is not nil). This is a crucial filter because it excludes auto-generated pages like Hugo’s taxonomy list pages (e.g., “Categories” or “Tags” pages) which don’t have a direct index.md or _index.md file. This explains why hugo list all only shows your regular pages and section index files.
  1. The run function then calls the generic list(...) where,
  • shouldInclude is the filter function defined above.
  • "buildDrafts", true instructs the command to include draft pages.
  • "buildFuture", true instructs the command to include pages with a future publication date.
  • "buildExpired", true instructs the command to include pages that have expired.
Collect the PAGE data

Once the pages are filtered, the createRecord function defines what data is collected for each page and how it’s formatted for the CSV output.

func newListCommand() *listCommand {
	createRecord := func(workingDir string, p page.Page) []string {
		return []string{
			filepath.ToSlash(strings.TrimPrefix(p.File().Filename(), workingDir+string(os.PathSeparator))),
			p.Slug(),
			p.Title(),
			p.Date().Format(time.RFC3339),
			p.ExpiryDate().Format(time.RFC3339),
			p.PublishDate().Format(time.RFC3339),
			strconv.FormatBool(p.Draft()),
			p.Permalink(),
			p.Kind(),
			p.Section(),
		}
	}

Further recommended content


Blogs
J. Marinero - Data Scientist & AI Engineer
